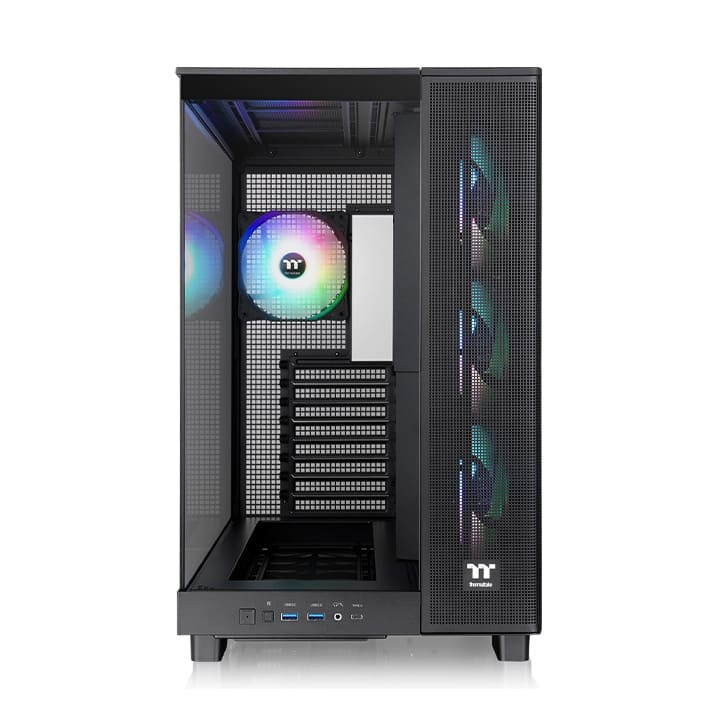

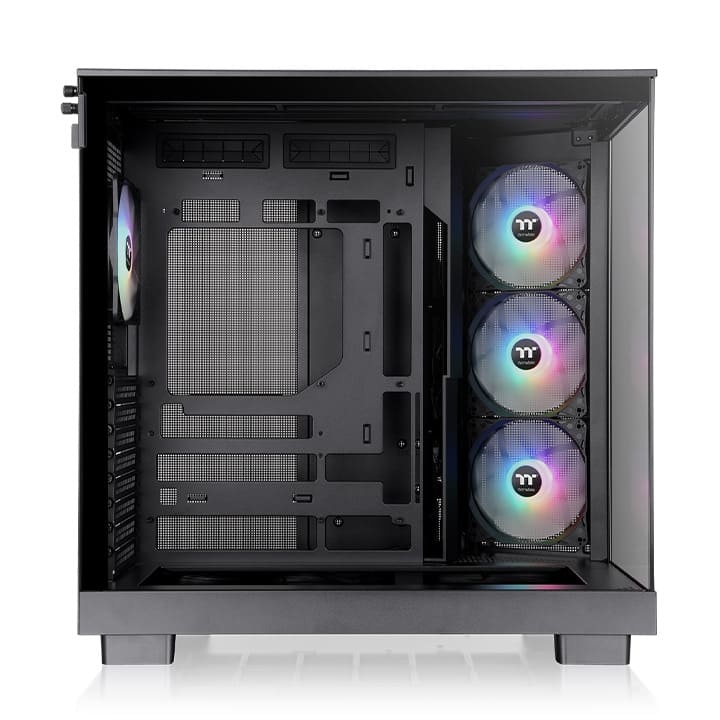

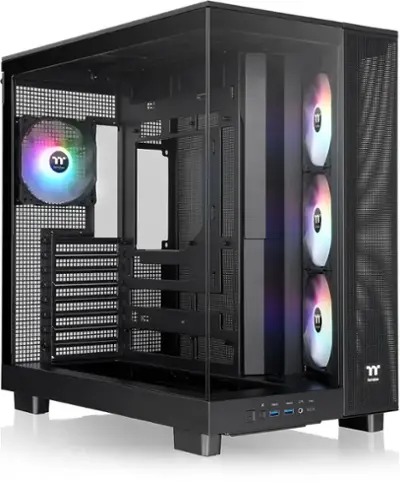

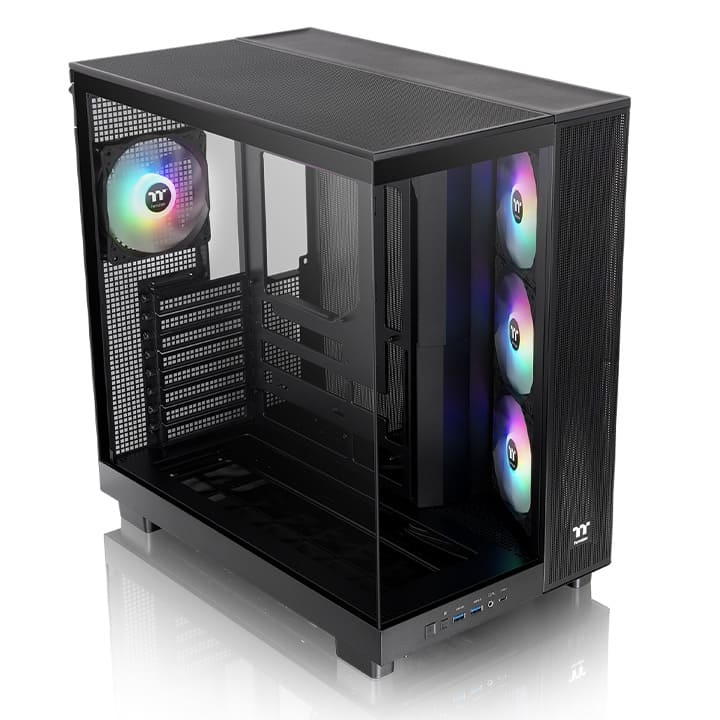

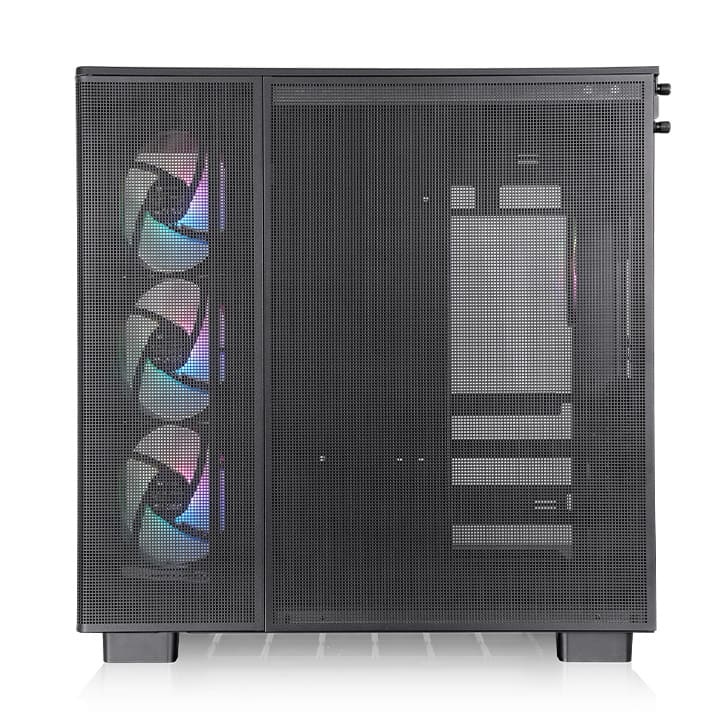

THERMALTAKE VIEW 380 XL DUAL CHAMBER ATX TG ARGB CASING – BLACK – CA-11E-00M1WN-00

3 YEARS WARRANTY

⭐Pictures and specifications provided herein are for reference only. Actual Product outlook and specification might be different for each region.

⭐Netstore reserves the right to modify or revise the content at anytime without prior notice.

⭐All trademarks and logos are the properties of their respective holders.

⭐ALL ITEMS ARE BRAND NEW & SEALED WITH WARRANTY BY RESPECTIVE LOCAL AUTHORISED DISTRIBUTOR WARRANTY

—————————————————————————————————

Product specification

—————————————————————————————————

P/N : CA-11E-00M1WN-00

Series : View

Model : View 380 XL TG ARGB

Dimension (H x W x D) : 471 x 288 x 469 mm

PANEL : 4mm Tempered Glass x 2

Color : Black

MATERIAL : SPCC

COOLING SYSTEM

Right(intake) : 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3

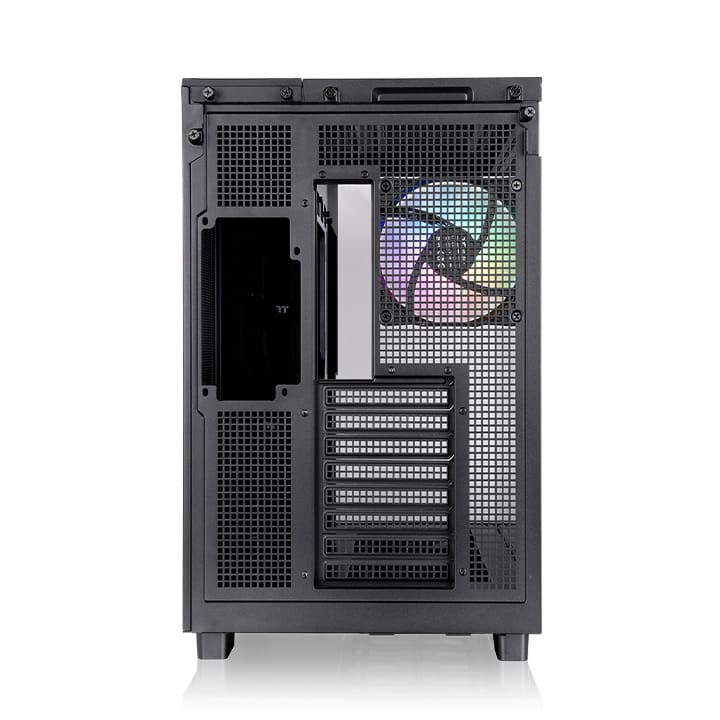

Rear(exhaust) : 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

Drive Bays : 1 x 3.5”, 2 x 2.5” or 3 x 2.5”

EXPANSION SLOTS : 8

MOTHERBOARDS : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O Port : USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU : Standard PS2 PSU (optional)

FAN SUPPORT

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm,

2 x 140mm, 1 x 140mm

Right:

3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:

1 x 120mm

Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

RADIATOR SUPPORT

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Right:

1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:

1 x 120mm

CLEARANCE :

CPU cooler max height: 160mm

VGA max length: 420mm

PSU max length: 180mm
