RM299.00
| Weight | 1 kg |
|---|---|
| Dimensions | 33 × 57 × 58 cm |
2 YEARS WARRANTY
⭐Pictures and specifications provided herein are for reference only. Actual Product outlook and specification might be different for each region.
⭐Netstore reserves the right to modify or revise the content at anytime without prior notice.
⭐All trademarks and logos are the properties of their respective holders.
⭐ALL ITEMS ARE BRAND NEW & SEALED WITH WARRANTY BY RESPECTIVE LOCAL AUTHORISED DISTRIBUTOR WARRANTY
—————————————————————————————————
Product specification
—————————————————————————————————

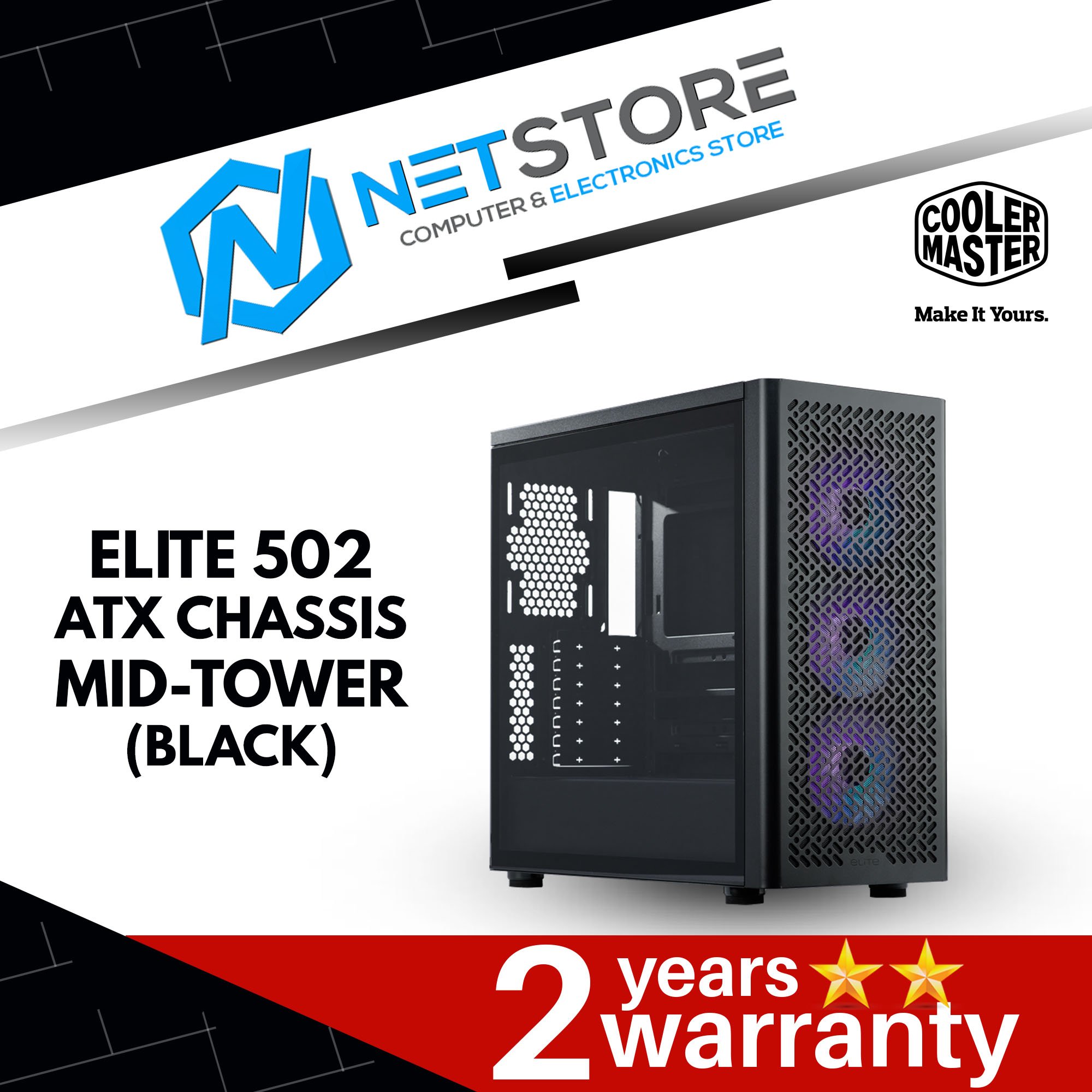

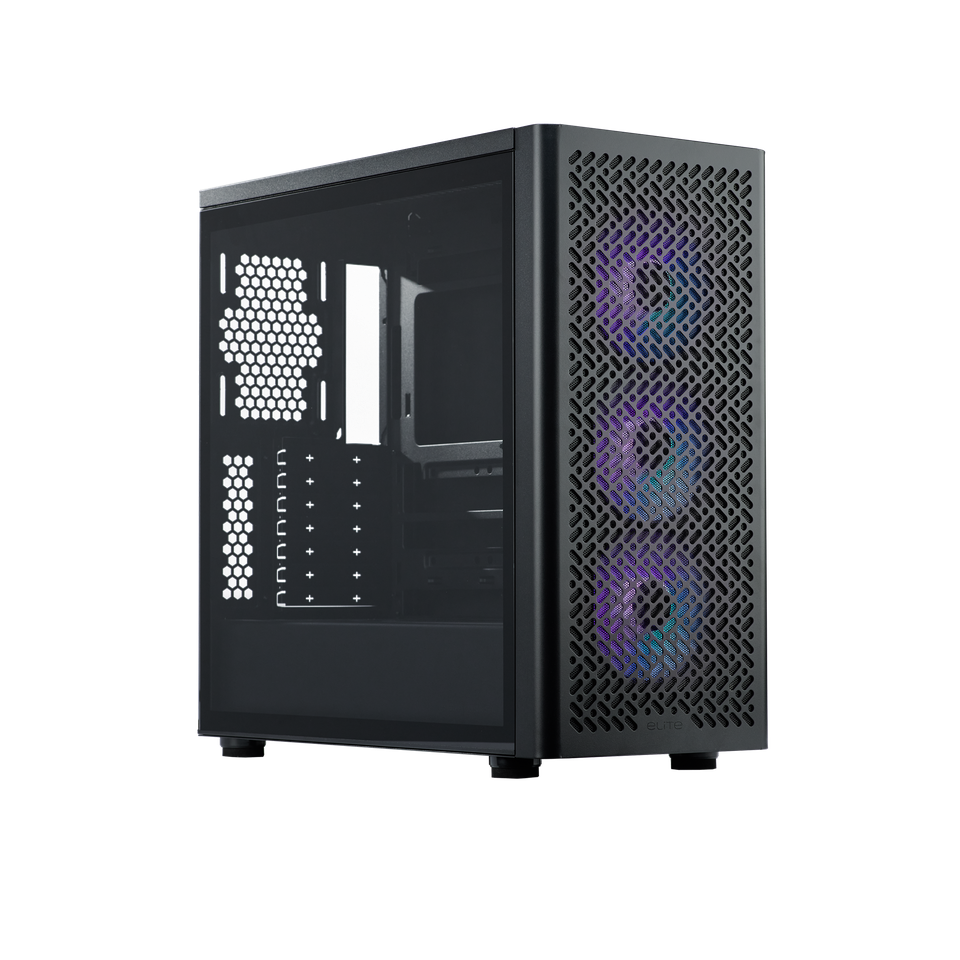

Product Name : ELITE 502
Model Number : ELITE 502: E502-KGNN-S00
Color(s) : ELITE 502: Black
Materials – Exterior : Steel
Materials – Right Side Panel : Steel
Materials – Left Side Panel : TG
Dimensions (L x W x H) : 474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions)
Volume (incl. Protrusions) : 49.73 L
Motherboard Support : ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12″x10.9″/ 30.5cmx27.7cm motherboards, may impact cable management)
Expansion Slots : 7
5.25″ Drive Bays : N/A
3.5″ Drive Bays : 2
2.5″ Drive Bays : 2 (Max.6)
I/O Panel – USB Ports : 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C
I/O Panel – Audio In / Out : 3.5 mm Combo x 1
Fan Support – Front : (Filtered) 140 mm x 3 / 120 mm x 3
Fan Support – Top : (Filtered) 140 mm x 2 / 120 mm x 3
Fan Support – Rear : 1x 120mm

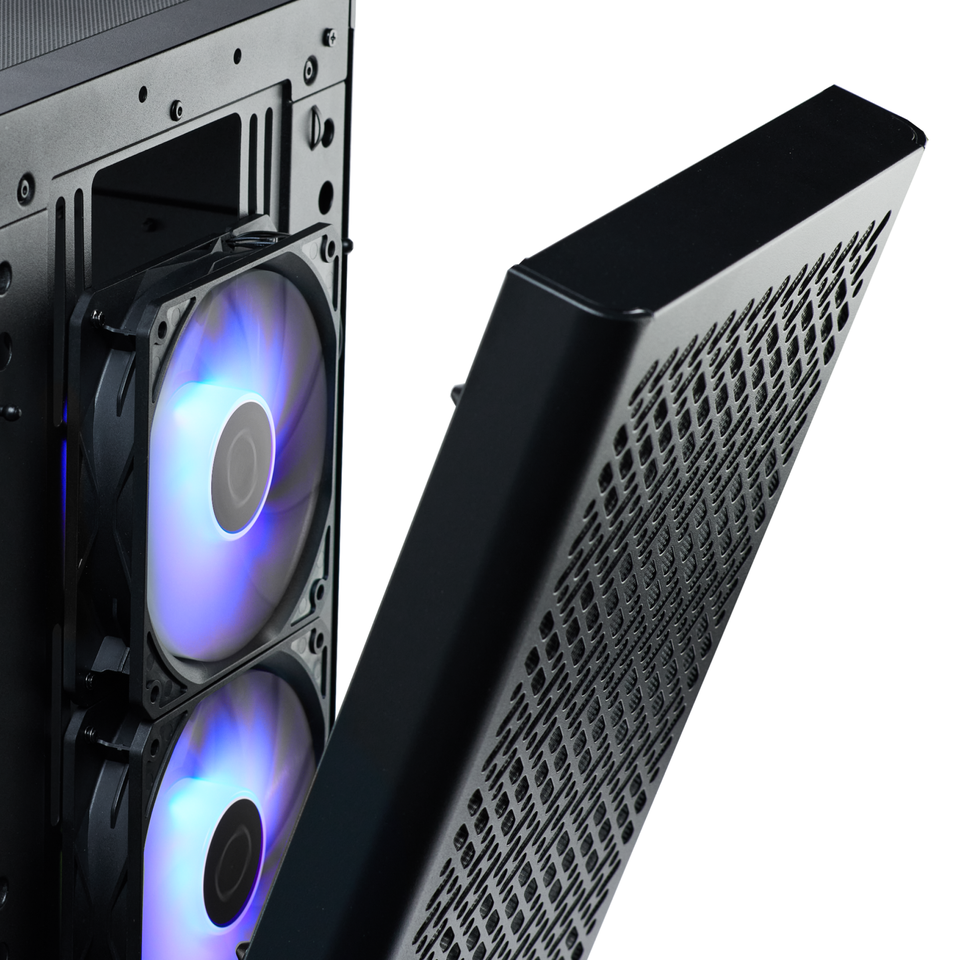

Pre-installed Fans – Front : 3x 120mm ARGB Fans
Pre-installed Fans – Top : N/A
Pre-installed Fans – Rear : N/A
Radiator Support – Front : 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)
Radiator Support – Top : 120 / 140 / 240 / 280 / 360mm
Radiator Support – Rear : 120mm
Clearance – CPU Cooler : 170mm
Clearance – PSU : 170 / 210mm (w/o HDD Cage)
Clearance – Graphics Card (installed 3.5″HDD BRK) : 360 / 410 mm (w/o front radiator)
Cable Routing – Behind Motherboard Tray : 33-35 mm
Dust Filters : Top, Front, Bottom
Power Supply Support : ATX
Warranty : 2 years
Series : Elite Series
Size : Mid Tower
